SpawnScene

Photos and video in, explorable 3D Gaussian Splat scenes out - reconstructed, trained, edited and viewed entirely in your browser.

Try it: spawnscene.com

SpawnScene is a fully client-side Gaussian Splatting studio built with Blazor WebAssembly. Feature matching, structure from motion, bundle adjustment, Gaussian splat training, depth estimation and rendering all run on your GPU through WebGPU, using SpawnDev.ILGPU and SpawnDev.ILGPU.ML. There is no server: nothing you load leaves your machine.

Screenshots

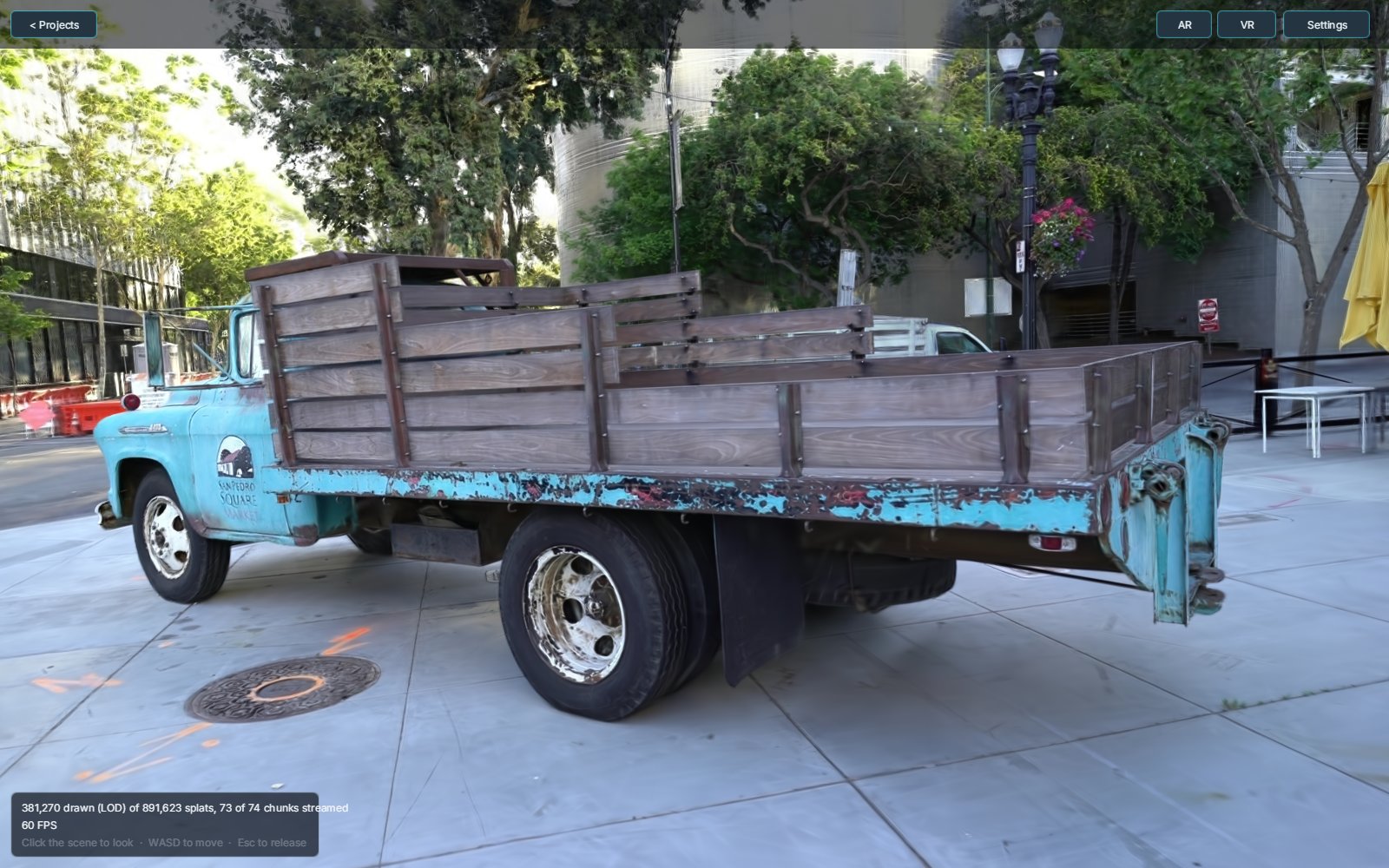

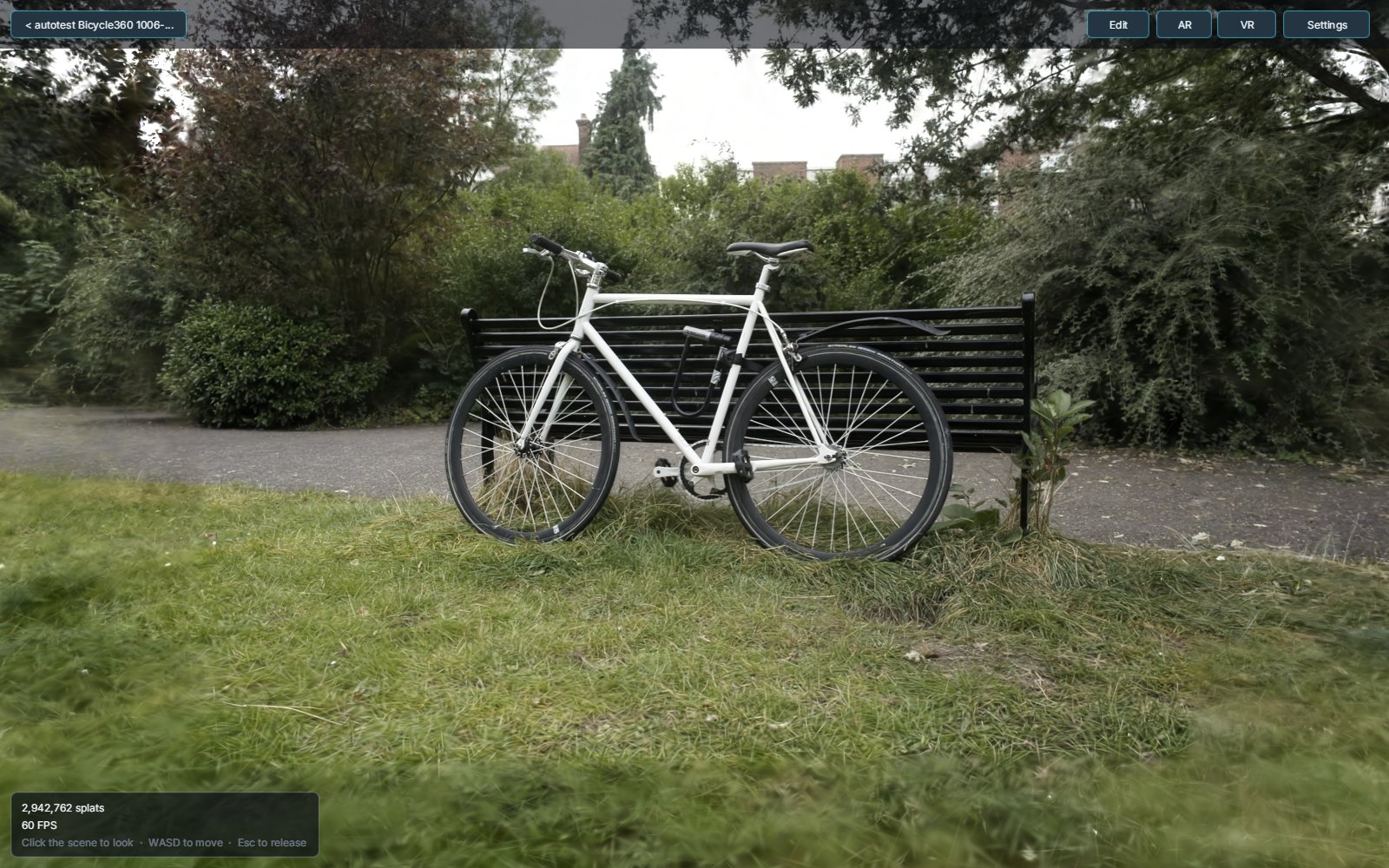

Trained from photos - Mip-NeRF 360 Bicycle and Tanks and Temples Truck, reconstructed and trained in the browser:

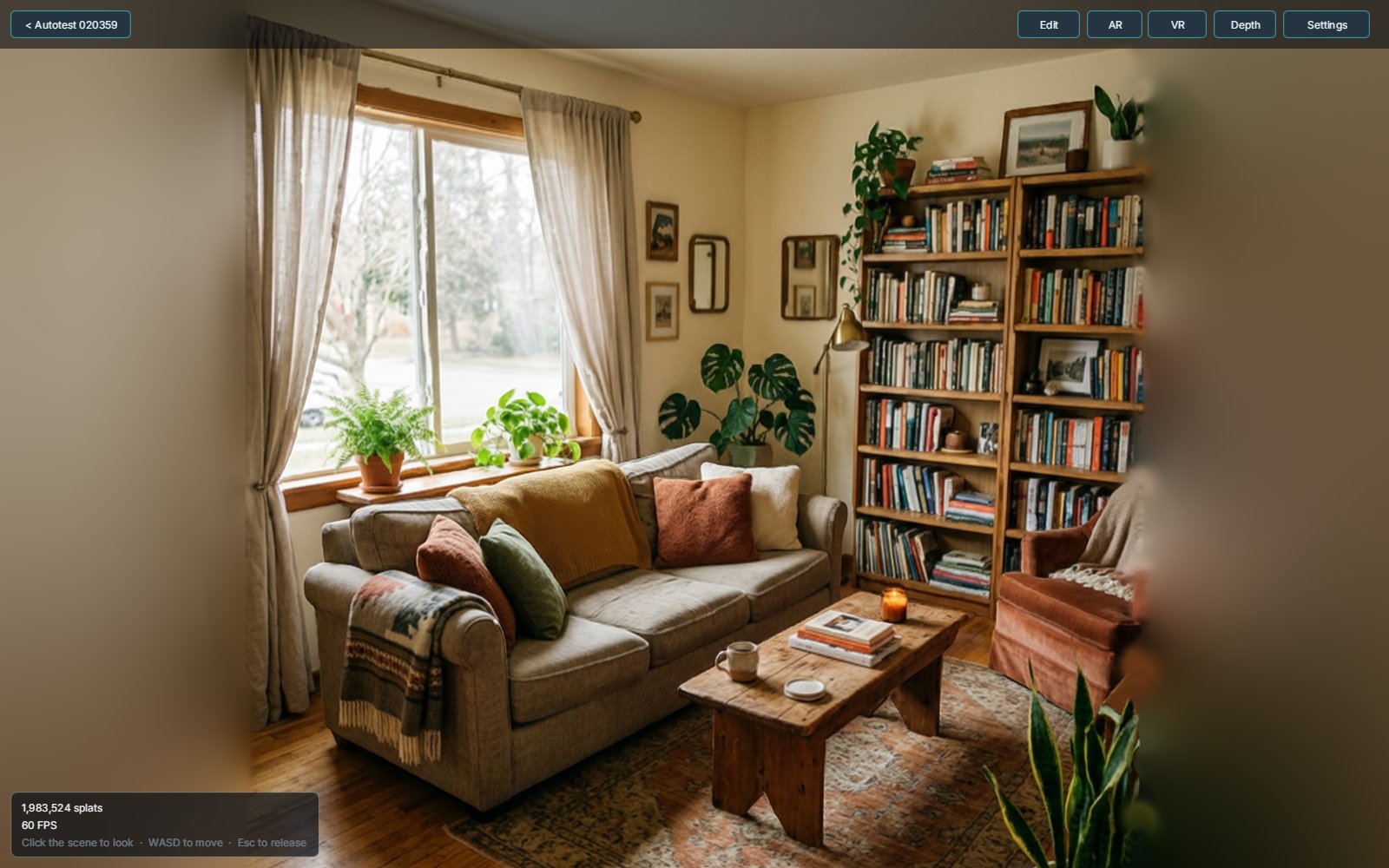

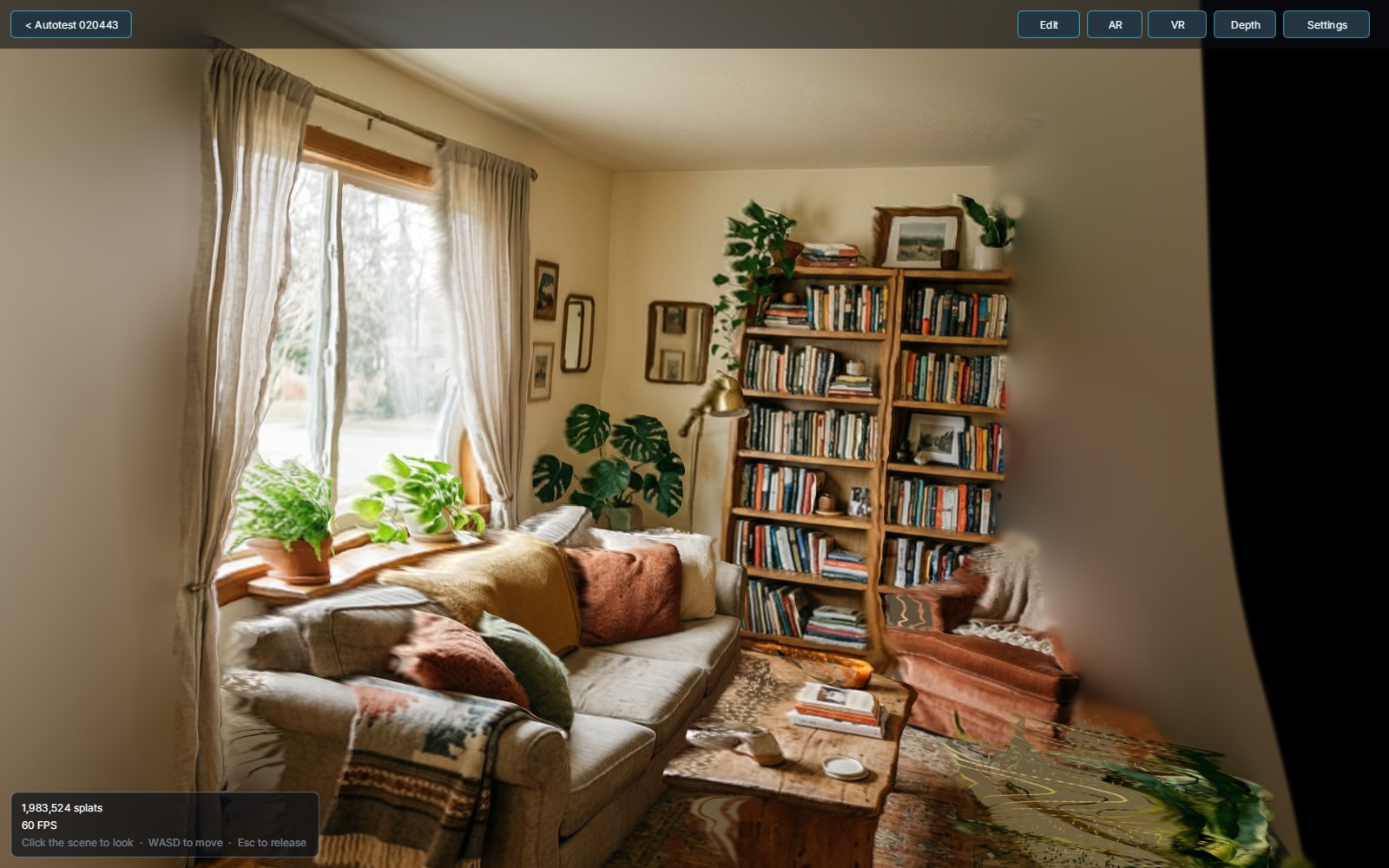

One photo - the Room sample as a scene, then the camera orbited away from where the photo was taken:

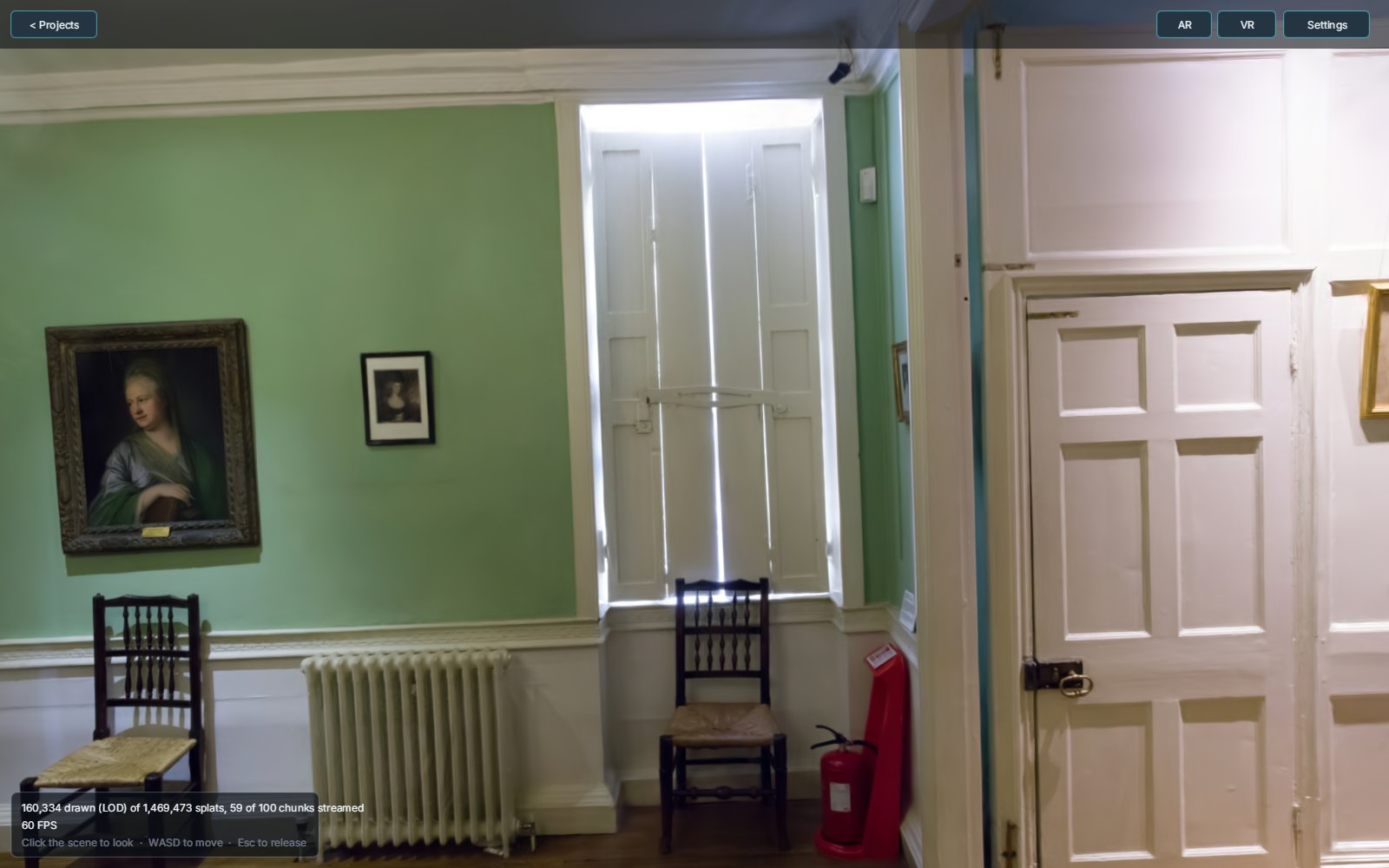

Streaming a multi-room scene - Deep Blending DrJohnson as a level-of-detail tree, loading only the chunks the view needs:

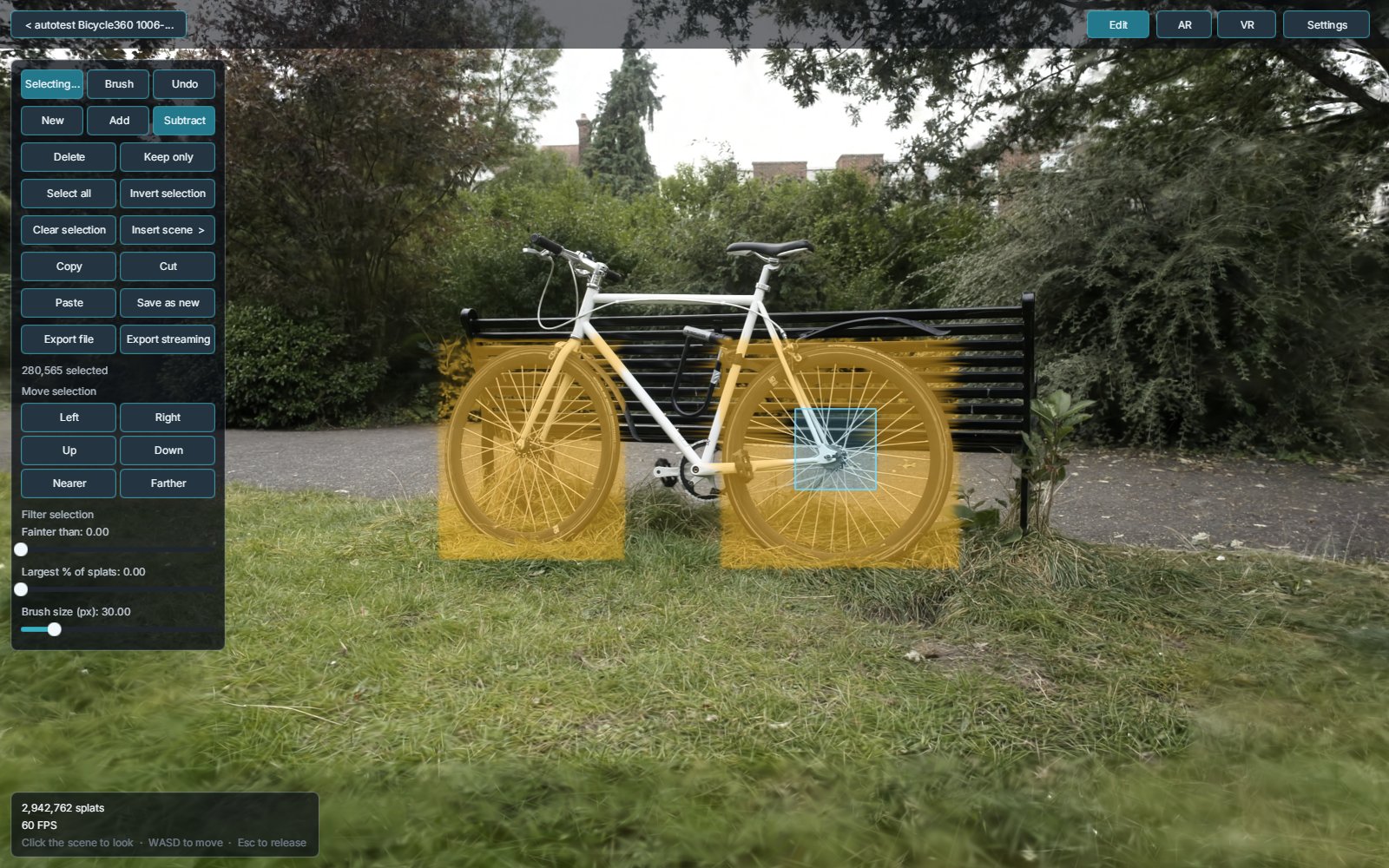

Editing - an add / subtract selection (both wheels, minus the rear hub) ready to delete, move or copy:

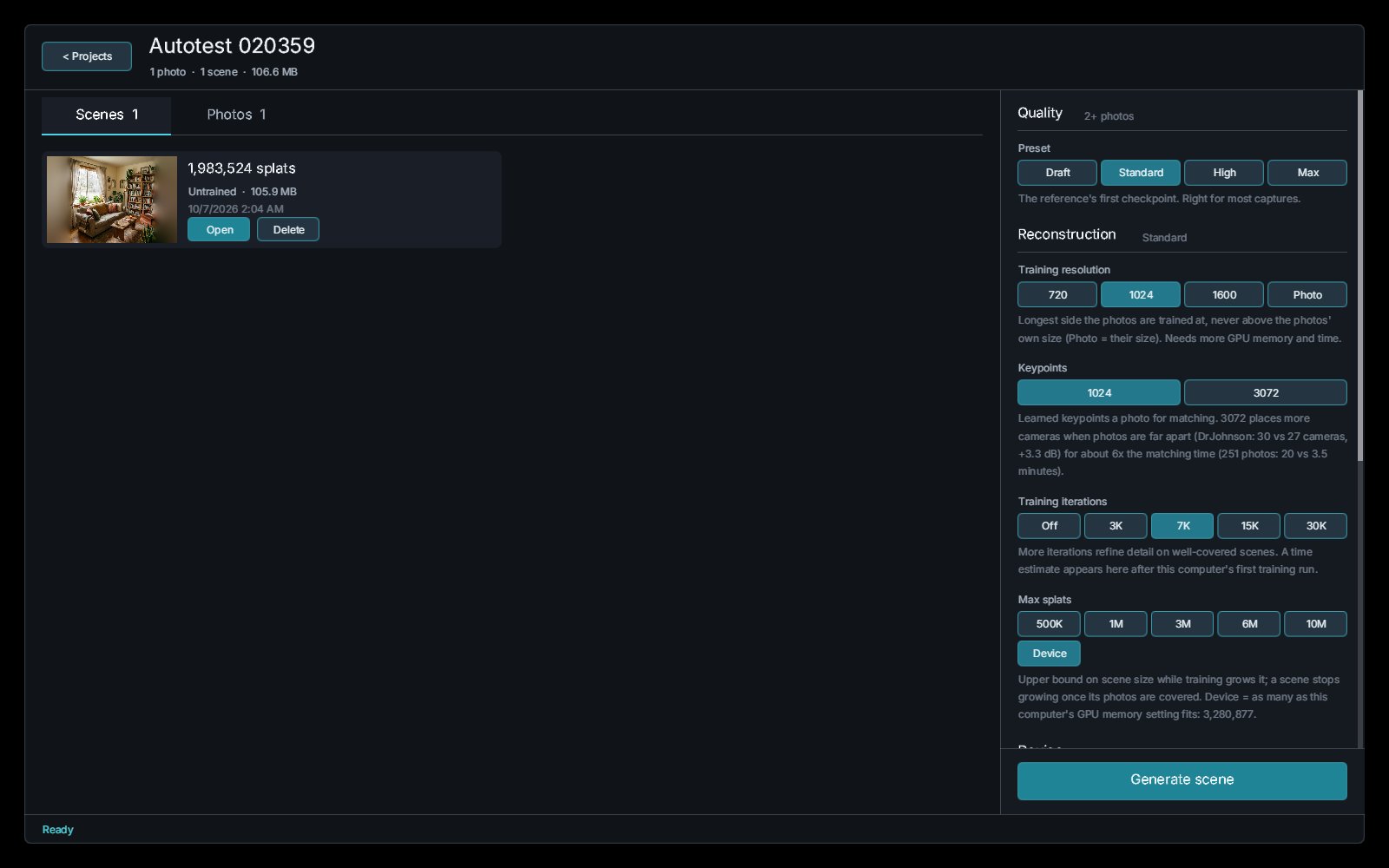

Projects - each project keeps its photos and scenes in browser storage, with quality presets for reconstruction:

How good is it?

Measured with the reference protocol (every 8th photo held out, never trained on; PSNR / SSIM on those photos):

Scene		SpawnScene (in the browser)	gsplat 1.5.3 (CUDA reference)
Tanks and Temples Truck, 30K iterations	PSNR / SSIM	24.95 dB / 0.887	25.13 dB / 0.877
	splats	0.89M	3.79M
Same photos, same camera poses (COLMAP), same resolution, same split. A comparison across every standard scene and the
other trainers (gsplat, the reference 3DGS, Brush) is being measured now; an earlier Bicycle row was withdrawn because
its gsplat number was not a like-for-like 7K run. Details and the protocol: Docs/benchmarks.md.

Viewer: opened in SpawnScene, Spark, PlayCanvas and GaussianSplats3D from the same seven camera poses, a 742K-splat scene draws the same picture in all four, and all four hold 60 fps at 1600x900 on an RTX 4070. Uncapped, SpawnScene is currently the slowest of the four (221-309 fps, 0.55-0.61x GaussianSplats3D's rate at every pose) - a gap we are working on. Screenshots and the full table: Docs/benchmarks.md#viewer.

Features

From many photos or a video

• Learned feature matching - RaCo-ALIKED keypoints with LightGlue+ matching, on the GPU.
• Structure from motion on the GPU - five-point relative poses, rotation averaging, global positioning and GPU bundle adjustment place the cameras; no COLMAP needed. A video is split into frames first. Photos held sideways are placed too.
• Capture feedback - the project page says how many photos were placed, why each one that was not was left out ("nothing in it matched the other photos"), and which directions no photo faces - the walls a room capture never saw.
• Gaussian splat training in the browser - a WebGPU trainer with SSIM + L1 loss, spherical harmonics up to degree 3 and AbsGS density control, plus:
  • seeds from the photos' depth: Depth Anything V3 depth where two photos agree, so walls that few features matched still start covered (a phone capture of a bathroom: +1.3 dB on held-out photos);
  • per-photo exposure: per-channel gains learned for each photo, so a phone's auto exposure does not end up baked into the scene (the same bathroom: +1.7 dB held out);
  • floater removal: a GPU census removes splats that hang in front of what the photos saw;
  • solid surfaces: training over a random background makes the walls the photos saw opaque, so turning around in a room no longer shows holes through them (a bathroom: see-through pixels off the photo path 12% -> 5%).
• Quality presets for photo resolution, keypoints, iterations and scene size, sized to your GPU's memory.

From a single photo

• Depth Anything V3 depth, with the camera's focal length from EXIF or estimated by the model.
• Super-resolution (ESPCN x3) for small photos before they become splats - finer colour and geometry.
• No holes when you move: every splat spans its surface cell, a hidden background layer fills in behind each depth edge, and the photo continues past its frame.
• Options: ?edgesnap=1 snaps depth edges to colour edges (fewer stretched "rubber sheet" edges), ?inpaint=1 paints the hidden layer with MI-GAN (or &inpaintmodel=lama - big-LaMa, better behind objects).
• Scene depth slider to correct a depth estimate that came out too deep or too flat, without changing the photo's own view.

Open other tools' scenes

Open scene file (or ?import=<url>) takes standard 3DGS .ply (the reference trainer, gsplat, nerfstudio, Postshot, Polycam), SuperSplat's compressed .ply, PlayCanvas .sog, Niantic .spz (v2/v3) and .splat - all decoded on the GPU (a 30K PLY is 0.5-0.8 GB) and turned upright. For example spawnscene.com/studio?import=...skull.sog.

Big scenes

• Level-of-detail rendering - a splat tree drawn to a budget, so huge scenes stay smooth.
• Streaming .spawnscene files - chunked, gzipped LOD trees that open immediately and stream the rest from a file or over HTTP range requests, under a fixed GPU memory pool.
• Partitioned training - a scene larger than one training run is trained in blocks and saved as a streamed scene.

Editing

• Select by rectangle or brush; add (Shift), subtract (Ctrl), invert, or select everything.
• Filters: only the faint splats (haze, floaters), or the largest N% (blobs).
• Delete, keep only, move, copy / cut / paste, insert another scene, undo.
• Save as a new scene, or export a .spawnscene file (flat or streaming).

Viewing

• WebGPU renderer with sorted and stochastic (sort-free) modes, EWA anti-aliasing and contrast-adaptive sharpening.
• WebXR: view scenes in VR or AR (Quest browser and tethered headsets), with a device-sized splat budget and in-headset box selection.
• The whole interface is drawn with WebGPU (SpawnDev.GameUI), so it works the same in a headset.
• Samples to try without photos of your own: openly licensed photo sets and single photos, one click from a new project.

Tech stack

Component	Technology
App	.NET 10 Blazor WebAssembly (AOT), C# 13
JS interop	SpawnDev.SpawnJS
GPU compute	SpawnDev.ILGPU (WebGPU backend)
Machine learning	SpawnDev.ILGPU.ML - Depth Anything V3, RaCo-ALIKED, LightGlue+, ESPCN, MI-GAN, big-LaMa - all run as WebGPU compute, no ONNX Runtime
User interface	SpawnDev.GameUI (WebGPU)
Rendering and training	Native WebGPU, WGSL shaders
Storage	Origin Private File System (projects, photos, scenes)

Requirements

• A WebGPU browser: Chrome or Edge 113+, or Safari 18+. Training large scenes wants a discrete GPU.
• Nothing to install.

Getting started

Run locally

Requires the .NET 10 SDK.

cd SpawnScene
dotnet run

Then open the URL shown in the terminal. A Release publish compiles AOT by default (-p:SpawnSceneAot=false for a quick interpreted build).

Use it

1. Create a project and add photos or a video.
2. Generate a scene: one photo builds a scene from depth; several photos are matched, posed and trained.
3. Explore with the mouse and WASD, open Edit to clean the scene up, or enter VR / AR.
4. Export a .spawnscene file, or Open scene file to view one.

Project layout

SpawnScene/
├── Pages/      Studio.*.cs - the studio, split by area (projects, training, editing, LOD, XR, ...)
├── Services/   GPU services - trainer, renderer, SfM, matching, depth, LOD tree and pager, editor kernels
├── Models/     projects, cameras, scenes
└── wwwroot/    samples, datasets for the built-in tests, screenshots
SpawnScene.Tests/   NUnit tests (CPU accelerator)
tools/              browser test harnesses (Chrome DevTools Protocol)
Docs/               methods and benchmarks (how it works, how it compares)
Research/           working notes and every measurement behind a default
Plans/              design notes (e.g. lod-streaming.md)

License

MIT License - see LICENSE for details.

Models downloaded at run time carry their own licences (RaCo, ALIKED BSD-3-Clause, LightGlue): see THIRD-PARTY-NOTICES.

Author

Todd Tanner (@LostBeard)
